EPL2000 Portable LTE System (Network in a Box)
  • For Portable Outdoor Customers
  • Standard : 3GPP Release 13
  • Seamless Mobility
  • Full QoS
  • 2x2 MIMO
  • IP 65
Software Specification
Item Description
LTE Standard 3GPP Release 13
Peak Data Rate TDD
20MHz:
DL 80Mbps, UL 20Mbps (SA1)
DL 110Mbps, UL 10Mbps (SA2)
10MHz:
DL 40Mbps, UL 7Mbps (SA1)
DL 55Mbps, UL 5Mbps (SA2)
FDD 20MHz: DL 150Mbps, UL 50Mbps
10MHz: DL 75Mbps, UL 25Mbps
User Capacity TDD 100 concurrent users
(32 concurrent VoLTE users @ SA2)
FDD 200 concurrent users
(50 concurrent VoLTE users)
QoS Control 3GPP standard QCI (1~9, 65, 69)
Modulation UL: QPSK, 16QAM
DL: QPSK, 16QAM, 64QAM
Voice/Video Solution CSFB, VoLTE, Video Call, MCPTT (MC Video)
Traffic Offload IOPS, MEC
SON ANR (Automatic Neighbor Relation)
PCI confliction detection
UL Interference Detection Supported
RAN Sharing Supported
Network Management Interface TR069
Operation and Maintenance
  • Remote/local maintenance, based on SSH protocol & web interface
  • Remote maintenance
  • Online status management
  • Performance statistics
  • Fault management
  • Configuration management
  • Local or remote software upgrading and loading
  • Logging
  • Connectivity diagnosis
  • Automatic start and configuration
  • Alarm reporting
  • KPI Recording
  • Cell Traffic Trace, Call Summary Log
Hardware Specification
Item Description Remark
Duplexing Mode FDD or TDD
Frequency Band LTE standard band Any requested bands
Carrier Configuration Single Carrier
Antenna Configuration 2T2R
Channel Bandwidth 5MHz/10MHz/15MHz/20MHz
Max, Output Power 4W + 4W Changeable on requests
Receiver Sensitivity -100 dBm
Synchronization GPS
Network Interface 100/1000 Base-T,
1000Base-X (SFP) 		RJ-45, optic
Installation Backpack
Input Power Battery type + AC 110/220V
Size (WxHxD) [mm] 295 x 553 x 173 With battery/bag/frame
Weight 10.5 kg Without battery
Power Consumption 130 Watt (typical)
Operating Temperature -30 ~ +50℃
Humidity IP 65

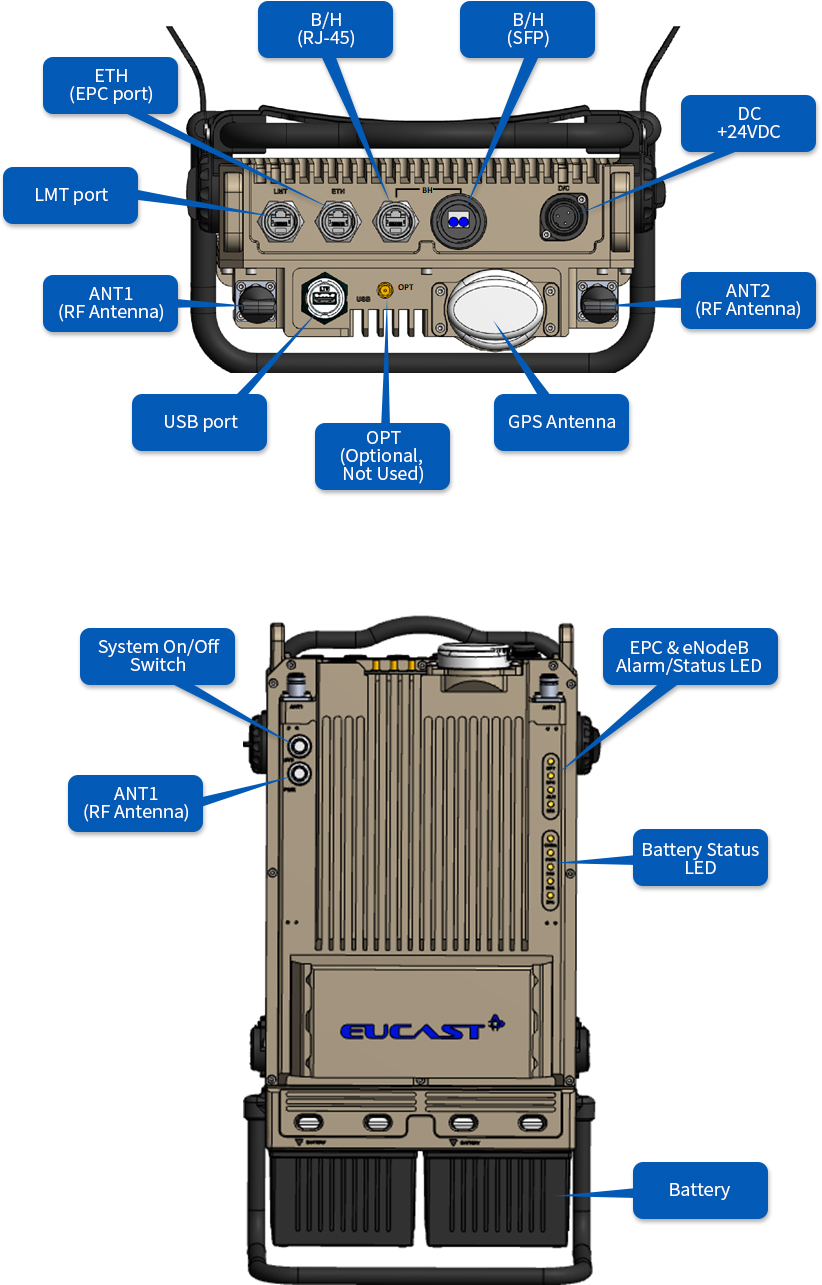

External Interface Port Description
Portable LTE System : EPL4128-1401
  • eNodeB : Digital Unit (DU) / Radio Unit (RU) integrated
  • EPC : MME, S-GW, P-GW, HSS, PCRF
  • App Servers (option) : IMS, PTT
  • Isolated E-UTRAN Operation for Public Safety (IOPS)
  • Standard : 3GPP Release 13
  • Freq. Band : FDD LTE Standard Band
  • CH. BW : 10 MHz
  • MIMO : 2x2
  • Seamless mobility
  • Full QoS
  • SON
  • Sync. : GPS
  • IP-65 (excluding FANs)
Parameter Value Comments
BTS Configuration Single Carrier
Network Interface 100/1000BaseT
1000Base-X 		RJ-45 Receptacle
SFP Receptacle
Max, Output Power 20W + 20W Can be Changed
Installation Rack Mount
Input Power -48VDC
Size(WxHxD) [mm] 19” x 204 x 450 Including FAN Units
Weight 25kg Including FAN Units
Power Consumption 350 Watt (typical) Including FAN Units
Operating Temperature -30 ~ +50℃ Including FAN Units

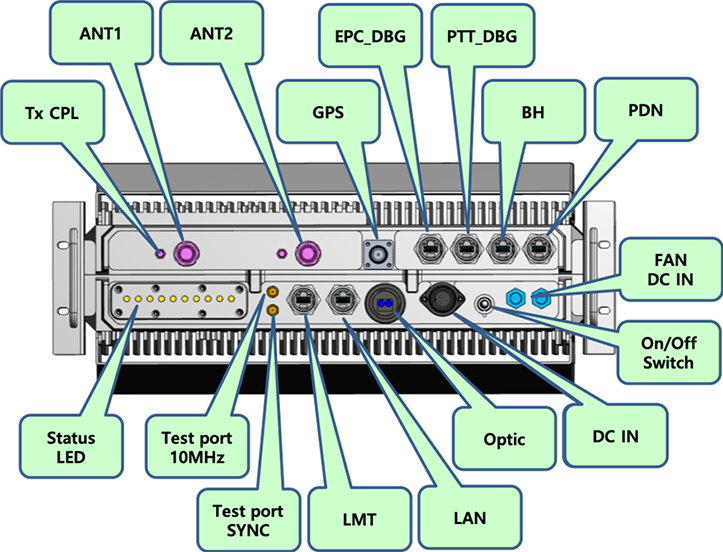

External Interface Port Description
No. Port Name Connector Type Comments
1 Tx CPL SMA Female TX 40dB Coupling Port
2 ANT1, ANT2 N-Type Female x 2 2T/2R RF Antenna Port
3 GPS N-Type Female GPS Antenna Port
4 EPC_DBG RJ45 Receptacle Internal EPC Debug Port
5 PTT_DBG RJ45 Receptacle Internal PTT Debug Port
6 B/H RJ45 Receptacle Backhaul, 1000Base-T
7 PDN RJ45 Receptacle 1000Base-T
8 FAN DC IN External FAN Unit Power
9 On/Off switch 1NT1-2G System Power Switch
10 D/C IN MS3012A 16-11P Receptacle -48VDC Power
11 Optic SFP Receptacle Optic Backhaul, 1000Base-X
12 LAN RJ45 Receptacle 1000Base-T
13 LMT RJ45 Receptacle 1000Base-T
14 SYNC SMA Female Test Port
15 10MHz SMA Female Test Port
16 Status LED System Status LED

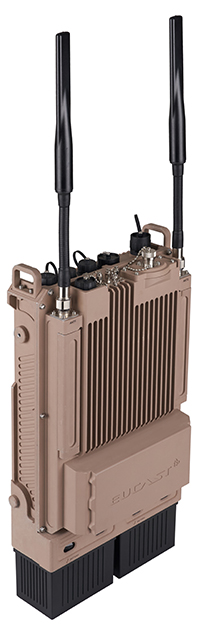

Network in a Box (backpack)
  • CU (core unit) / DU (digital unit) / RU (radio unit) integrated
  • 5GC integrated
  • App Servers(option): IP-PTT
  • Standard : 3GPP Release 16
  • Freq. Band : TDD, 4.72~4.82GHz (N79)
  • Ch. BW. : 20/100 MHz
  • MIMO : 2x2
  • Sync. : GPS or IEEE1588v2
  • IP65
Software Specification
5G Capability Release 16
Standard Support 3GPP 5G-NR Rel-16
Duplexing mode TDD
Peak throughput DL: 1Ghps, UL: 800 Mbps (DDSUU, 2* 100MHz)
Modulation QPSK, 16QAM, 64QAM, 256QAM
Component carrier BW 20, 40, 100 MHz
Max. Bandwidth (OBW) DL: 2*100 MHz, UL: 2*100 MHz
Instantaneous BW (IBW) 200 MHz
Sub-carrier spacing 30 kHz
MIMO layers DL:2, UL:2
Antennas (Tx/Rx) 2Tx 2Rx
TTI duration 0.5 ms
# Users/TTI DL/UL: 8 users/TTI
Spectrum support n41, n48, n77, n78, n79
Operation and Maintenance
  • Remote/local maintenance, based on SSH & web interface
  • Remote maintenance
  • Online status management
  • Performance statistics
  • Fault management
  • Configuration management
  • Local or remote software upgrading and loading
  • Logging
  • Connectivity diagnosis
  • Automatic start and configuration
  • Alarm reporting
  • KPI Recording
  • OAM/EMS integration: NETCONF YANG
Hardware Specification
Parameter Value Comments
Network Interface 10G Base-X
2.5G base-T
Max, Output Power 33dBm + 33dBm
Installation Backpack
Input Power DC +24V
Size(WxHxD) [mm] 464 x 260 x 122 [mm]
Weight <10kg Without batteries
Power Consumption 110 Watt (typical)
Operating Temperature -20℃ ~ +50℃
Network in a Box (Car Carrying)
  • CU (core unit) / DU (digital unit) / RU (radio unit) integrated
  • Standard : 3GPP Release 16
  • Freq. Band : TDD, 4.72 ~ 4.82GHz
  • Ch. BW. : 20/100 MHz
  • MIMO : 2x2
  • Sync. : GPS or IEEE1588v2
  • IP65
Software Specification
5G Capability Release 16
Standard Support 3GPP 5G-NR Rel-16
Duplexing mode TDD
Peak throughput DL: 1Ghps, UL: 800 Mbps (DDSUU, 2* 100MHz)
Modulation QPSK, 16QAM, 64QAM, 256QAM
Component carrier BW 20, 40, 100 MHz
Max. Bandwidth (OBW) DL: 2*100 MHz, UL: 2*100 MHz
Instantaneous BW (IBW) 200 MHz
Sub-carrier spacing 30 kHz
MIMO layers DL:2, UL:2
Antennas (Tx/Rx) 2Tx 2Rx
TTI duration 0.5 ms
# Users/TTI DL/UL: 8 users/TTI
Spectrum support n41, n48, n77, n78, n79
Operation and Maintenance
  • Remote/local maintenance, based on SSH & web interface
  • Remote maintenance
  • Online status management
  • Performance statistics
  • Fault management
  • Configuration management
  • Local or remote software upgrading and loading
  • Logging
  • Connectivity diagnosis
  • Automatic start and configuration
  • Alarm reporting
  • KPI Recording
  • OAM/EMS integration: NETCONF YANG
Hardware Specification
Parameter Value Comments
Network Interface 10G base-X
2.5G base-T
Max, Output Power 43dBm + 43dBm
Installation 19” rack amount or Table mount
Input Power DC +28V
Size(WxHxD) [mm] 429 x 385 x 155 [mm]
Weight <25kg
Power Consumption 230 Watt (typical)
Operating Temperature -30 ~ +50℃
Portable 5G System (Network in a Box)
  • CU (core unit) / DU (digital unit) / RU (radio unit) integrated
  • 5GC integrated
  • App Servers(option): IP-PTT
  • Standard : 3GPP Release 16
  • Freq. Band : TDD, 4.72~4.82GHz (N79)
  • Ch. BW. : 20/100 MHz
  • MIMO : 2x2
  • IP65
Software Specification
5G Capability Release 16
Standard Support 3GPP 5G-NR Rel-16
Duplexing mode TDD
Peak throughput DL: 1Ghps, UL: 800 Mbps (DDSUU, 2* 100MHz)
Modulation QPSK, 16QAM, 64QAM, 256QAM
Component carrier BW 20, 40, 100 MHz
Max. Bandwidth (OBW) DL: 2*100 MHz, UL: 2*100 MHz
Instantaneous BW (IBW) 200 MHz
Sub-carrier spacing 30 kHz
MIMO layers DL:2, UL:2
Antennas (Tx/Rx) 2Tx 2Rx
TTI duration 0.5 ms
# Users/TTI DL/UL: 8 users/TTI
Spectrum support n41, n48, n77, n78, n79
Operation and Maintenance
  • Remote/local maintenance, based on SSH & web interface
  • Remote maintenance
  • Online status management
  • Performance statistics
  • Fault management
  • Configuration management
  • Local or remote software upgrading and loading
  • Logging
  • Connectivity diagnosis
  • Automatic start and configuration
  • Alarm reporting
  • KPI Recording
  • OAM/EMS integration: NETCONF YANG
Hardware Specification
Parameter Value Comments
Network Interface 2.5G base-T
Max, Output Power 30dBm + 30dBm
Installation Drone(Ceiling) mount
Input Power DC +12V
Size(WxHxD) [mm] 400 x 250 x 127 [mm]
Weight <6kg
Power Consumption 95 Watt (typical)
Operating Temperature -30℃ ~ +50℃
EUCAST 5G Product - mmWave 5G Outdoor RAN
  • CU (core unit) / DU (digital unit) / RU (radio unit) integrated
  • Standard : 3GPP Release 16
  • Freq. Band : TDD, N257
  • 5G NR NSA (EN-DC)
  • NR-DC (NR NR Dual Connectivity)
  • Ch. BW. : 4 * 100 MHz
  • Antenna : 128Tx 128Rx
  • Sync. : GPS or IEEE1588v2
  • IP65
Software Specification
5G Capability Release 16
Standard Support 3GPP 5G-NR Rel-16
Duplexing mode TDD
Peak throughput DL: 2.2 Ghps, UL: 200 Mbps
Modulation 64 QAM
Component carrier BW 100 MHz
Max. Bandwidth (OBW) DL: 400 MHz (4CC), UL: 400 MHz (4CC)
Instantaneous BW (IBW) 800 MHz
Sub-carrier spacing 120 kHz
MIMO layers DL:2, UL:1
Antennas (Tx/Rx) 128Tx 128Rx
TTI duration 0.125 ms
# Users/TTI DL/UL: 2 users/TTI
Spectrum support 26.5~29.5GHz, 37.0~40.0GHz (n257, n258(partial), n260, n261)
Operation and Maintenance
  • Remote/local maintenance, based on SSH & web interface
  • Remote maintenance
  • Online status management
  • Performance statistics
  • Fault management
  • Configuration management
  • Local or remote software upgrading and loading
  • Logging
  • Connectivity diagnosis
  • Automatic start and configuration
  • Alarm reporting
  • KPI Recording
  • OAM/EMS integration: NETCONF YANG
Hardware Specification
Parameter Value Comments
Frequency(Band) 28GHz(n257): 26.5~29.5GHz -
Network Interface 10Gbps SFP+ 802.3 10G Base- X
Max, Output Power EIRP 48dBm (64QAM)
Installation Wall mount
Input Power DC +28V
Size(WxHxD) [mm] 291 x 270 x 54 [mm]
Weight <4.5kg
Power Consumption 55 Watt (typical)
Operating Temperature -5℃ ~ +40℃
